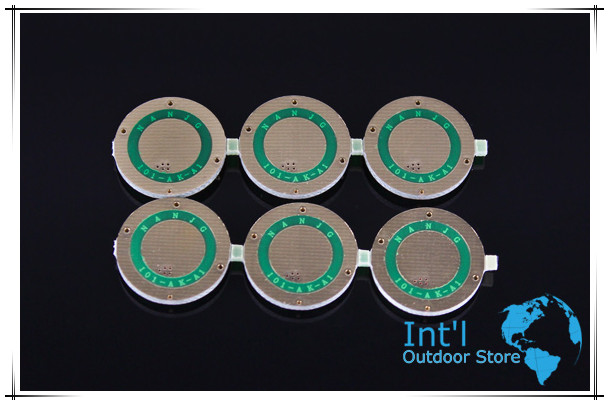

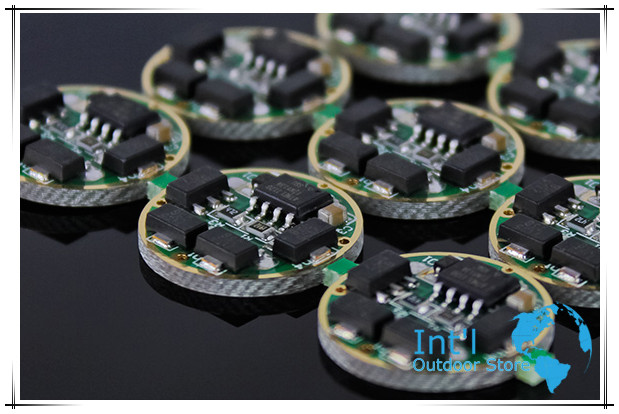

AMC7135*4  5-Mode Circuit Board (Nanjg 101-AK-A1)

AMC7135*4 5-Mode Circuit Board (Nanjg 101-AK-A1)

Quick description:

Nanjg 101-AK-A1
  • Features:

    *Input voltage: 2.9V-4.5V *Current: 1.4A

    *Constant current *PCB diameter: 17mm

    *PCB thickness: 1.6mm *Total height: 3.3mm

    *Memory function *PWM: 4500Hz

    *Low voltage protection: At 2.9-3V the light will drop to low mode and slowly flash

    *Gold plated contacts *Copper leads with tinned ends included

    *Modes: Low (5%) - Medium (30%) - High (100%) - Strobe - SOS (Default) Low (5%) - Medium (30%) - High (100%) (Soldering 2 pins together on the MCU is required, please look the last photo)
