EMISAR D4V2 MULE 1*18650 HIGH POWER LED FLASHLIGHT

Metal button is glued by deault, if you prefer not to glue it, please send us a request.

NTG35 LEDs are recommended for good tint, high CRI and free of greenish tint.

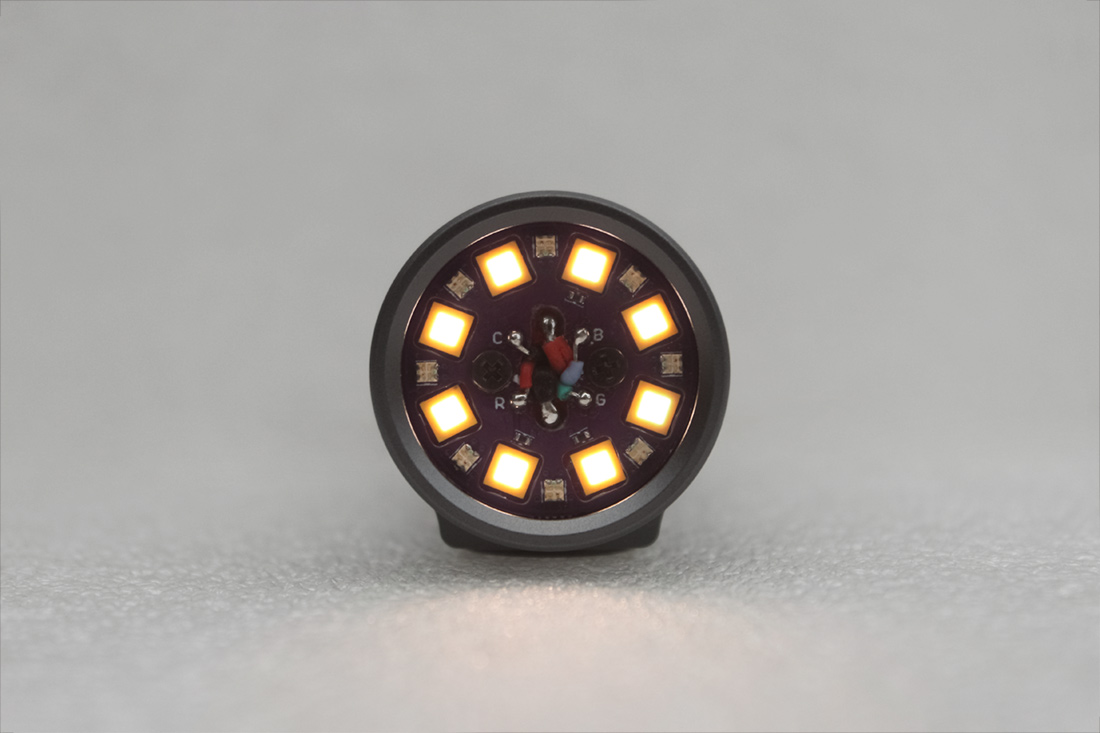

D4V2 8*LEDs MULE comes with the aux LED by default (except the UV version), completely flood, no hotspot

Emisar D4V2 MULE puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top battery works only (not included in the price), D4V2 MULE does not work with protected battery.

The Lume X1 boost driver upgrade is available for the Luminous SST-20, NTG35, 519A, 5W UV LEDs etc, 1.5 Amps per LED. Note that the boost driver output is limited in comparison to the default driver, it is more efficient (90-95%) with a longer running time and less heat.

The Lume X1 is a high power driver – for best performance, recommended to use low ESR, high CDR 18650 unprotected cells: – Molicel P30B, P28B, P28A, P26A (grey) – LG HJ2 (lilac), HG2 (brown) – Samsung 20S (blue), 30Q (pink) – BAK N18650CNP (pink) – Murata/Sony VTC5A (green) Please note that this flashlight is not a toy and must be operated responsibly.



Features:

• CNC machined from aircraft-grade aluminium

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight:58g

• Dimensions: 95mm(length) * 28mm(head) * 24mm(body)



OTF lumen output at start-up for Lume X1 driver:

NTG35 5000K/4200K: 3600lm

NTG35 2700K: 2800lm

NTG35 1800K: 2100lm



519A 5700K/5000K DOMED: 3400lm

519A 4500K/4000K DOMED: 2800lm

519A 3500K/2700K DOMED: 2200lm

519A 1800K: 1800lm



519A 5700K/5000K DEDOMED(about 1300K CCT reduce): 3100lm

519A 4500K/4000K DEDOMED (about 1200K CCT reduce): 2500lm

519A 3500K/2700K DEDOMED (about 1200K CCT reduce): 1600lm



SST-20 6500K: 4200lm



OTF Lumen output at start up for Linear + FET driver

519A 5700K/5000K : 4200lm

519A 4500K/4000K: 3800lm

519A 3500K/2700K: 3500lm

519A 1800K: 2800lm



NTG35 5000K/4200K: 4500lm

NTG35 2700K: 3900lm

NTG35 1800K: 2900lm

SST-20 6500K: 4800lm



This product uses free software of Anduril 2, distributed under the terms of the GPLv3.

Source code is available from https://toykeeper.net/anduril
