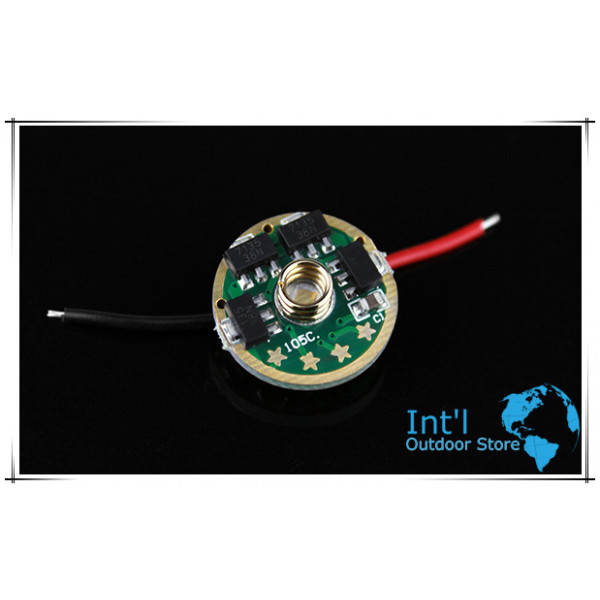

Qlite Rev.A 7135*8 Multiple Modes Circuit Board 3.04A

New quality control setup to test the Qlite drivers for the correct program before shipping, using the Maynuo M8811 DC source meter.

http://youtu.be/WKLAPzO0gRg

Features:

*Input voltage: 2.8V - 4.5V *Current: 3.04A

*Constant current

*PCB diameter: 17mm

*PCB thickness: 1.6mm

*Components height: 4.7mm

*Memory function (sets in after 2 seconds)

*No high pitch noises

*No visible flicker on any mode

*Reverse polarity protection

*Gold plated spring

*Gold plated contacts

*Copper leads with tinned ends already soldered

*Low voltage protection: At 2.9-3V the light will switch to an emergency low mode. At 2.8V the light will flash 9 times to announce imminent cut-off.

*Strobe mode is 10Hz

*Beacon cycle is 2Hz blink for 1 second, 4 seconds light off Group of modes:

1st Star : 2% - 25% - 100% (Default)

2nd Star : 5% - 30% - 100% - Strobe - Beacon

3rd Star : 15% - 100%

4th Star : 5mA - 2% - 25% - 100%
