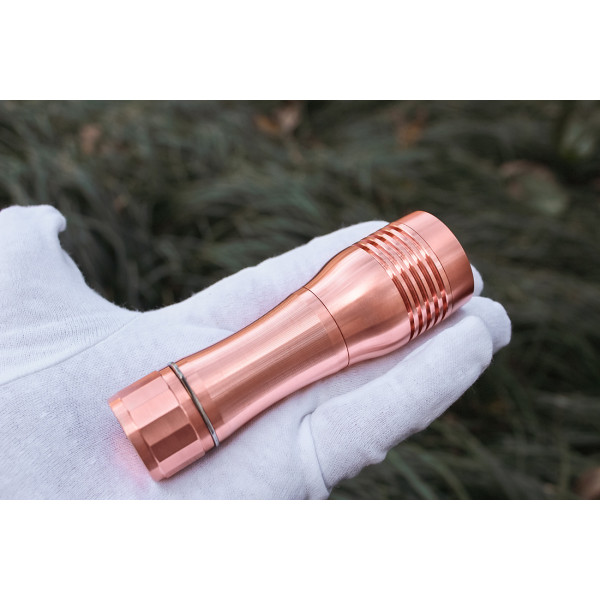

All copper KR1 tail e-switch 18650 pocket thrower

All copper KR1 tail e-switch 18650 pocket thrower

Quick description:

KR1 All Copper

LED & Tint*

Tailcap type*

Please Choose

  • The B35AM, FC-40, XHP70.3 HI, 519A dedomed versions are with the OP reflector by default, other versions are with the  SMO reflector by default.


    • Pocket clip and lanyard ring are both included by default

    • Discrete knurling

    • Grippy anodized surface

    • CNC machined from copper

    • Anti-reflective coated glass lens

    • Unihead construction

    • High lumen output and low moon output

    • Ramping interface

    • Electronic tail switch

    • Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

    • Temperature step-down

    • Waterproof and dustproof to IP67 standard (up to 1 meter)

    • Default 18650 body with optional 18350 battery tube

    • Weight: 280g (without battery)

    • Dimensions: 110mm(length) * 35mm(head) * 24mm(body), 80mm (length 18350)


    W1 (Osram CSLNM1.TG): 900lm, Lux : 110Kcd (110,000cd)

    W2 (Osram CSLPM1.TG): 1300lm, Lux: 100Kcd (100,000cd)

    XHP70.3 HI: 2200lm, Lux: 25Kcd (25,000cd)

    SST-40 5000K/6500K: 2200lm, Lux: 29Kcd (29,000cd)

    SFT-40 6500K: 1600lm, Lux: 100Kcd (100,000cd)

    FC-40: 1600lm, Lux: 14Kcd (14,000cd)

    519A dedomed: 1200lm, Lux: 20Kcd (20,000cd)

    SBT90.2: 4000lm, Lux: 100Kcd (100,000cd)

    B35AM: 1000lm, Lux: 12Kcd (12,000cd)

    SFN60 3V, 6500K/5500K, 5000lm, Lux: 55Kcd (55,000cd)

    SFN60 3V, 3000K, 4000lm, Lux:44Kcd(44,000cd)



    This product uses free software of Anduril 2, distributed under the terms of the GPLv3.

    Source code is available from
