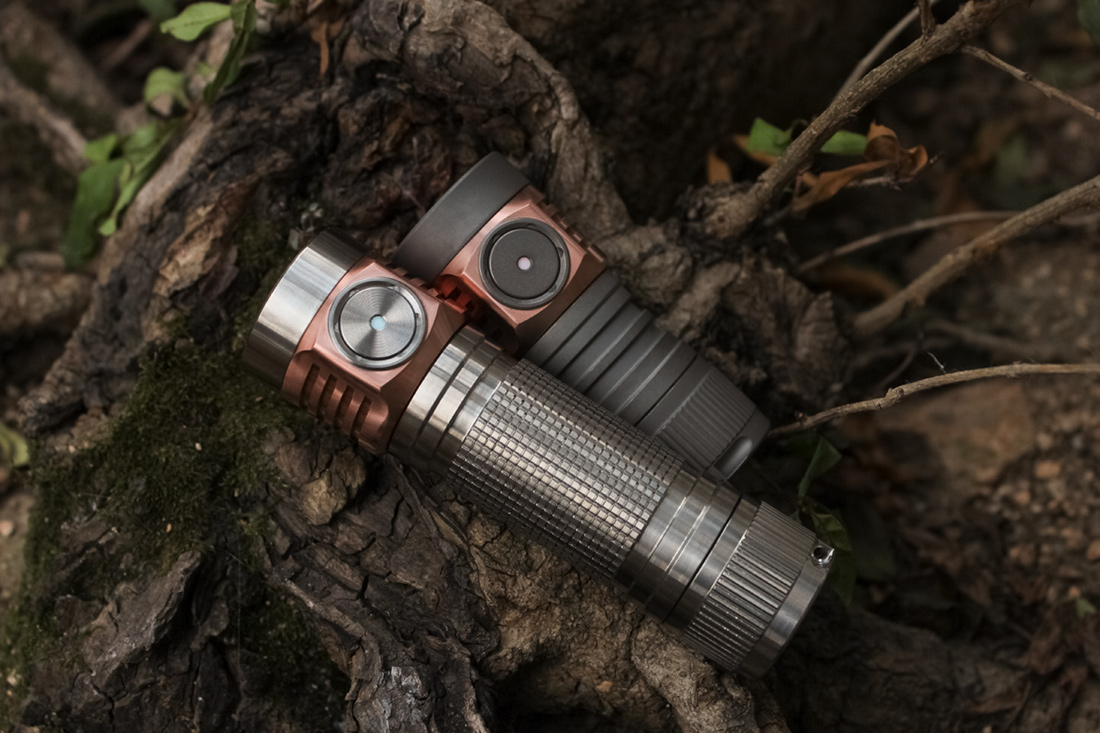

EMISAR D4V2 TI QUAD 18650 HIGH POWER LED FLASHLIGHT

Metal button is glued by deault, if you prefer not to glue it, please send us a request.

NTG35 LEDs are recommended for good tint, beam pattern, high CRI and free of greenish tint.



Emisar D4V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top 18650 battery works only (not included in the price), D4V2 does not work with protected battery.

The Lume X1 boost driver upgrade is available for the Luminous SST-20, SFT-25R, Nichia 219B R9080, Nichia 519A R9080, NTG35 LEDs etc, 3 Amps per LED, as well as 5W UV LED (1.2 Amp per LED). The boost driver is not compatible with Nichia E21A, Nichia E17A . Note that the boost driver output is limited in comparison to the default driver, it is more efficient (90-95%) with a longer running time and less heat.

The Lume X1 is a high power driver – for best performance, recommended to use low ESR, high CDR 18650 unprotected cells: – Molicel P30B, P28B, P28A, P26A (grey) – LG HJ2 (lilac), HG2 (brown) – Samsung 20S (blue), 30Q (pink) – BAK N18650CNP (pink) – Murata/Sony VTC5A (green) Please note that this flashlight is not a toy and must be operated responsibly.



Features:

• CNC machined from titantium and copper

• High end custom made N244M optic installed by default.

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight:119g

• Dimensions: 95mm(length) * 28mm(head) * 24mm(body)



OTF lumen output at start-up for Lume X1 driver:

NTG35 5000K/4200K: 2900lm OTF / 12,800cd

NTG35 2700K: 2500lm OTF / 10,200CD

NTG35 1800K: 2000lm OTF 7,100cd



519A 5700K/5000K DOMED: 2600lm OTF / 8,200cd

519A 4500K/4000K DOMED: 2400lm OTF / 7,200cd

519A 3500K/2700K DOMED: 2200lm OTF / 6,100cd

519A 1800K: 2000lm OTF / 3,800cd



519A 5700K/5000K DEDOMED(about 1300K CCT reduce): 2300lm OTF / 11,000cd

519A 4500K/4000K DEDOMED (about 1200K CCT reduce): 2100lm OTF / 9,300cd

519A 3500K/2700K DEDOMED (about 1200K CCT reduce): 1800lm OTF / 6,200cd



SST-20 6500K: 3200lm OTF / 15,200cd

SFT-25R 6500K/5000K: 3600lm / 20,800cd



OTF Lumen output at start up for Linear + FET driver

NTG35 5000K/4200K: 4200lm OTF / 17,100cd

NTG35 2700K: 3600lm OTF / 12,800cd

NTG35 1800K: 2800lm OTF / 9,200cd



519A 5700K/5000K : 3800lm OTF / 8,900cd

519A 4500K/4000K: 3500lm OTF / 7,500cd

519A 3500K/2700K: 3200lm OTF / 6,200cd

519A 1800K: 2600lm OTF / 4,500cd



519A 5700K/5000K DEDOMED(about 1300K CCT reduce): 2600lm OTF / 13,000cd

519A 4500K/4000K DEDOMED (about 1200K CCT reduce): 2300lm OTF / 12,300cd

519A 3500K/2700K DEDOMED (about 1200K CCT reduce): 1900lm OTF / 8,200cd



SST-20 6500K: 4200lm OTF / 17,600cd

SFT-25R 6500K/5000K: 4800lm / 25,600cd

Quad 365nm UV & reflectors with ZWB2 filters version (no aux LEDs).
