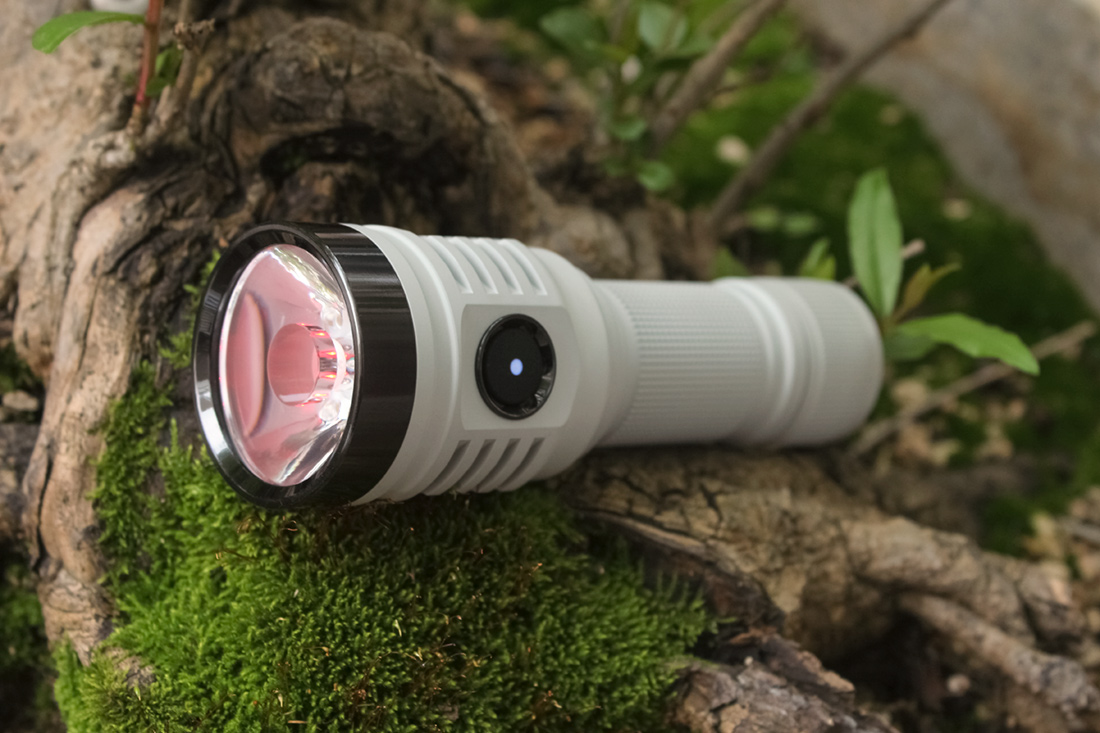

NOCTIGON DM11 1*21700 MIDDLE RANGE THROWER

W2(cslpm1.tg), SFT-40, SFT-42R, SFT-60, SBT90.2 LEDs are with the Lume N1 buck driver by default. (with fading aux LED feature)

B35AM, NTG50 LEDs are with the Lume X1 boost driver by default.



What is the Lume N1?

The Lume N1 is a next-generation Buck + Fusion driver combining a high-efficiency buck regulator with a high-current linear power stage.

Designed for modern low-Vf LEDs and high-performance low-resistance cells, it provides full constant-current regulation from moonlight to turbo (firmware configurable to over 32A), delivering performance across a wide range of emitter and battery configurations. Click here for more information.

This product includes software developed by Atmel Corporation. Copyright (C) 2014–2015 Atmel Corporation.

All rights reserved. Please see the source code on GitHub for more information.



1. Works with unprotected, flat top 21700 battery only (not inlcuded)

2. Please be noted there is no lanyard hole in the tailcap and no magnetic tailcap option for the 21700 tube.

3. The glass lens of the SBT90.2 LED is removed to fit the optic, please try not to disassemble the SBT90.2 version,

since the LED could easily be damaged when the optic is removed.



Features:

• CNC machined from aircraft-grade aluminium

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

• Weight: 120g (without battery)

• Dimensions: 117mm(length) * 40mm(head) * 26.5mm(body)

W1 (Osram CSLNM1.TG): 900lm, Lux : 140Kcd (140,000cd)

W2 (Osram CSLPM1.TG): 1300lm, Lux: 120Kcd (120,000cd)

SFT-40 6500K: 1800lm, Lux: 130Kcd (130,000cd)

SFT-40 5000K: 1600lm, Lux：110Kcd (110,000cd)

SBT90.2: 4500lm, Lux: 108Kcd (108,000cd)

NTG50 5000K/4200K: 2700lm, Lux: 29Kcd (29,000cd)

NTG50 2700K: 2250lm, Lux: 23Kcd (23,000cd)

NTG50 1800K: 1700lm, Lux: 17Kcd (17,000cd)

SFT-42R 6500K: 3100lm, Lux: 152Kcd (152,000cd)

SFT-42R 5000K: 2700lm, Lux: 120Kcd (120,000cd)

SFT-60 6500K: 4200lm, Lux: 150Kcd (150,000cd)
