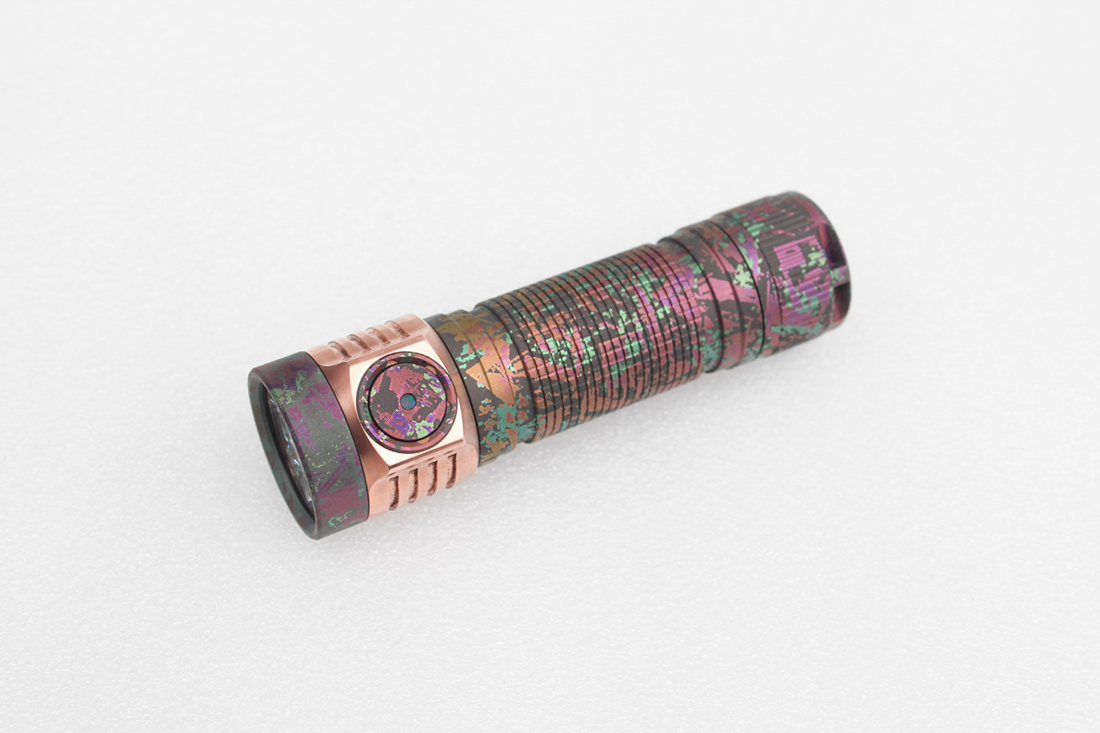

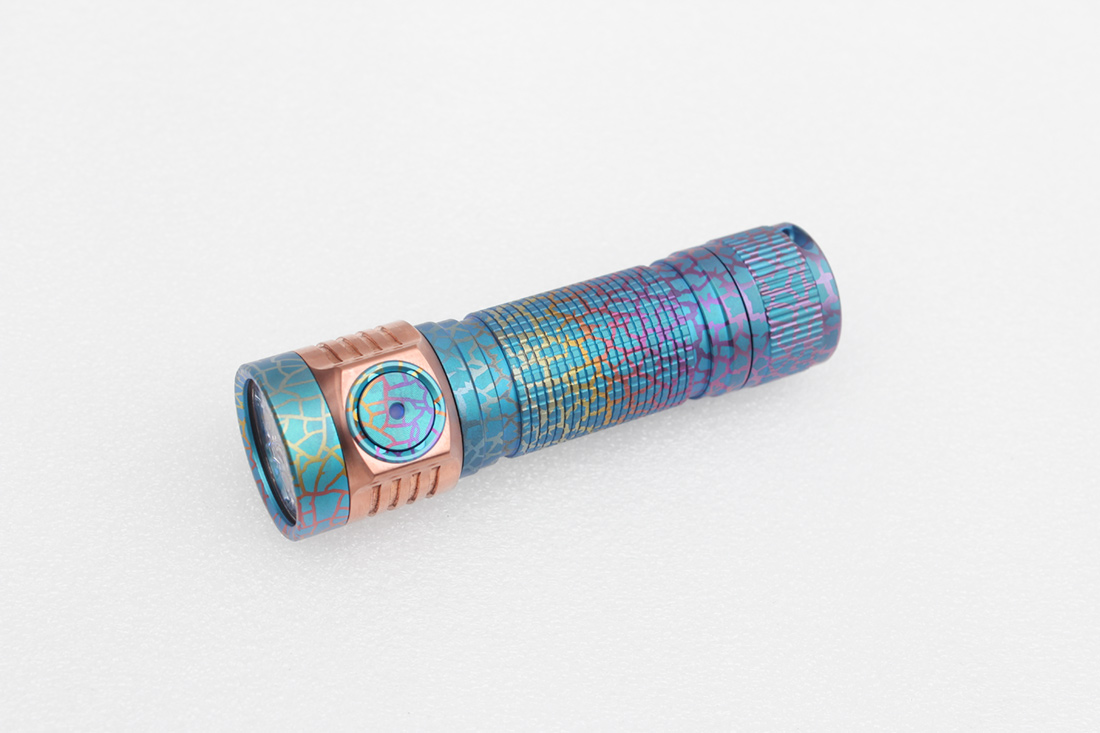

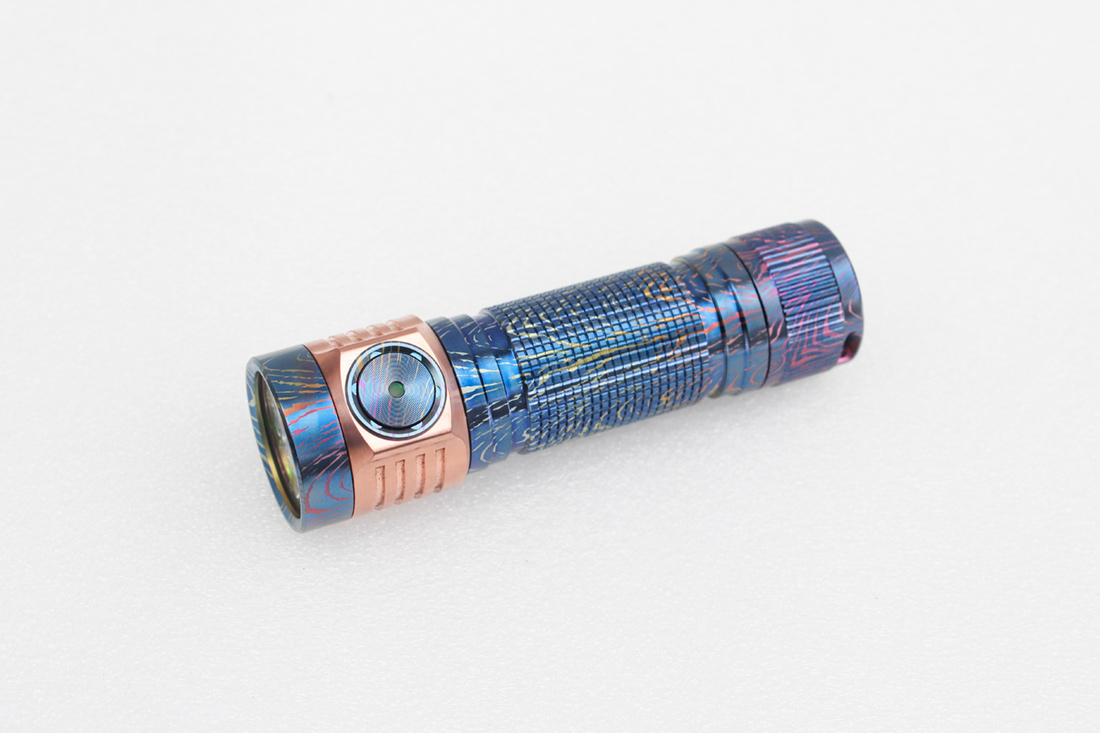

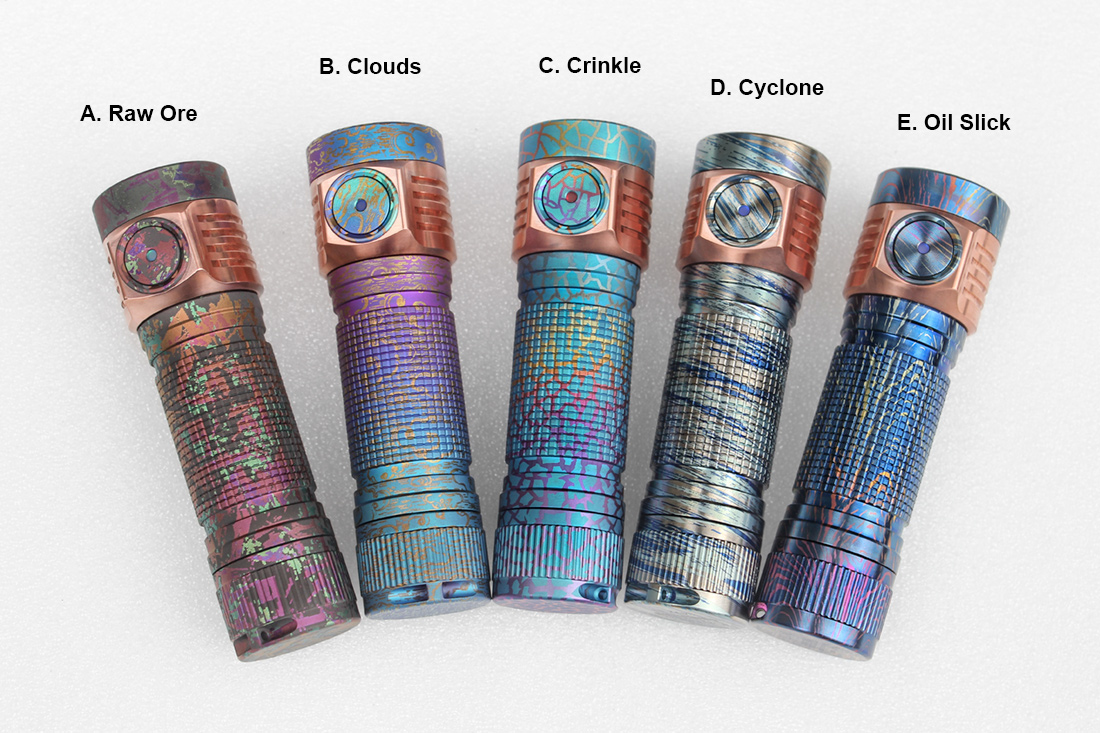

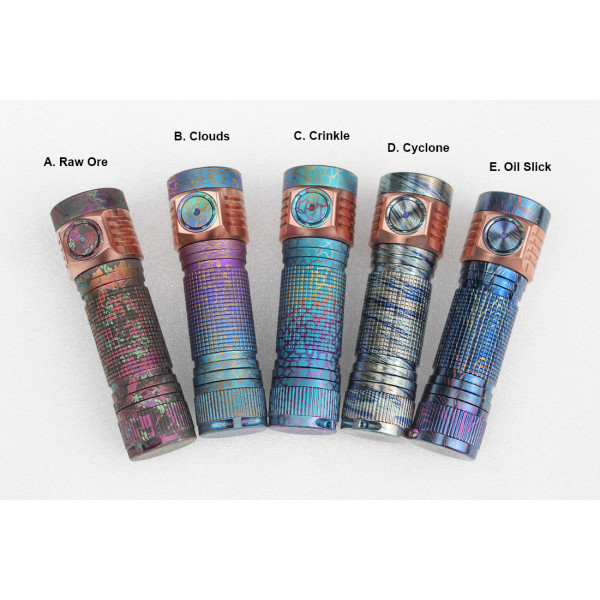

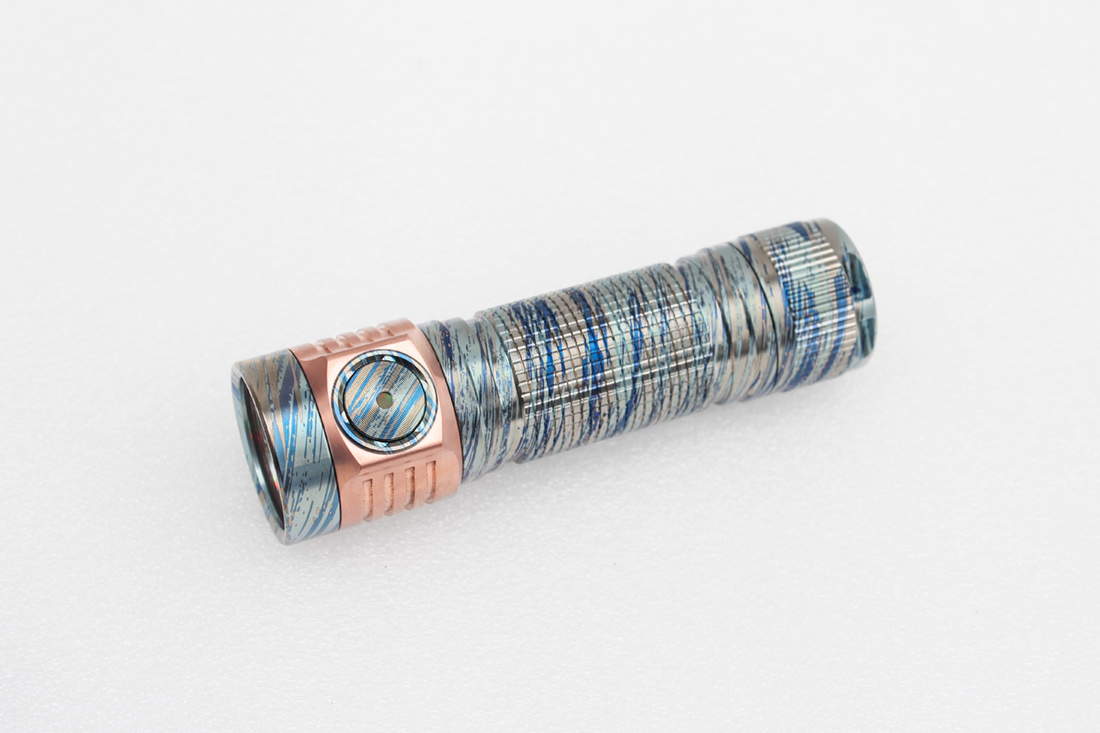

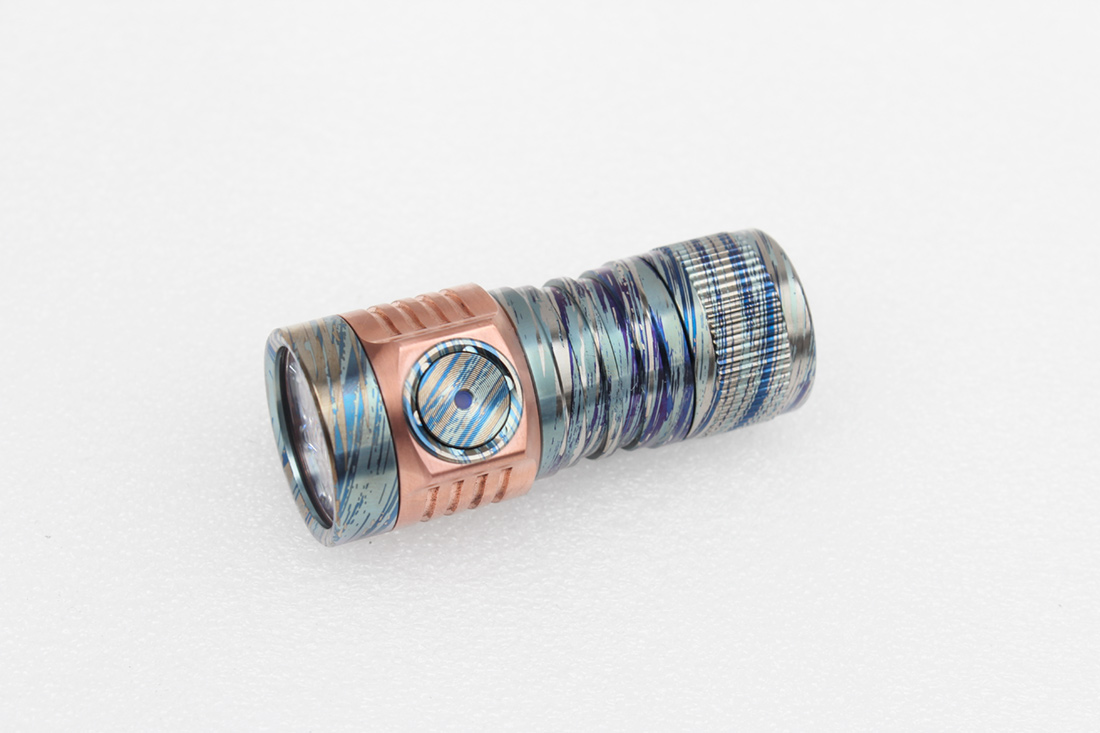

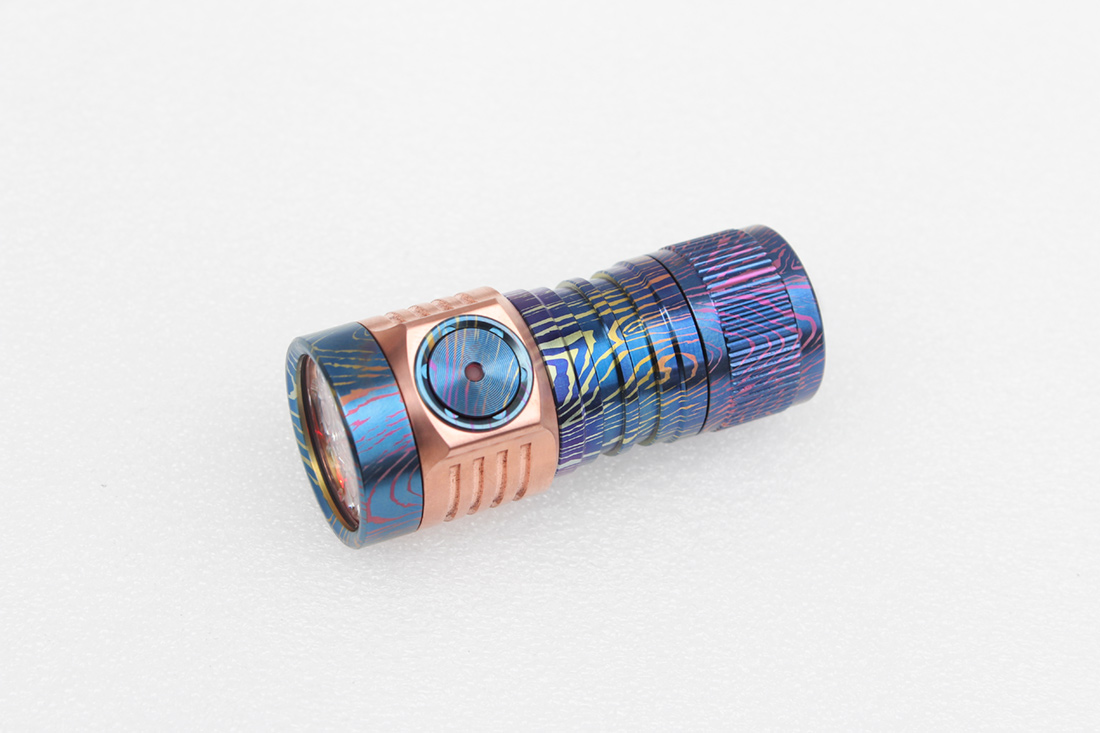

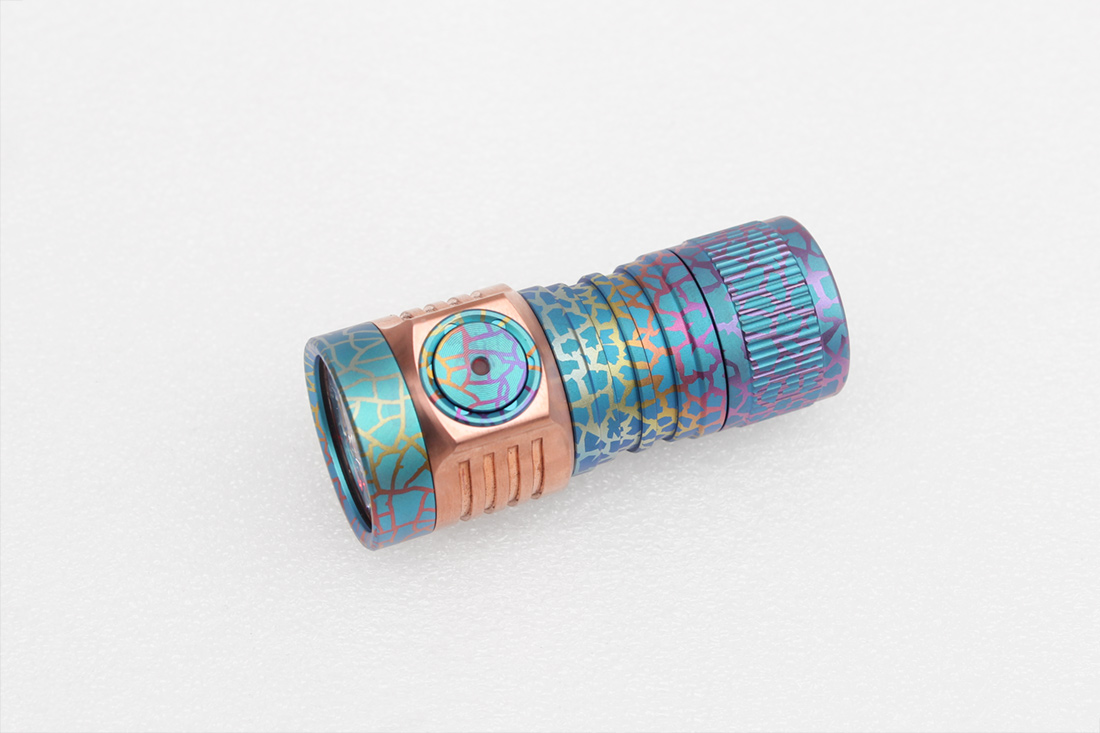

Emisar D4V2TI COLORFUL SERIES

This is single channel version, for the dual channel version, please click here

The boost driver upgrade is available for the quad version SST-20, SFT-25, Nichia 519A R9080, Nichia 219B R9080 versions, each LED receives 3A current. The driver is not compatible with Nichia E21A, Nichia E17A, and mule versions of the flashlight.

Please be noted that the boost driver version will have less output on turbo than the regular version, it is a more efficient driver(90-95%) with longer running time and less heat.

The Lume X1 is a high power driver - for best performance, recommended to use low ESR, high CDR 18650 unprotected cells: - Molicel P30B, P28B, P28A, P26A (grey) - LG HJ2 (lilac), HG2 (brown) - Samsung 20S (blue), 30Q (pink) - BAK N18650CNP (pink) - Murata/Sony VTC5A (green) Please note that this flashlight is not a toy and must be operated responsibly.

Emisar D4V2 puts a high lumen output but generates a lot of heat at the same time, please acknowledge before purchasing. Unprotected, flat top battery works only (not included in the price), D4V2 does not work with protected battery.

Features:

• CNC machined from Titanium and Copper.

• Efficient UK made Carclo Quad LED optics

• Unihead construction

• High lumen output and low moon output

• Ramping interface

• Electronic soft touch switch

• Beryllium-Copper springs with 45% IACS superior to stainless steel alloys used for springs with only 2% IACS.

• Temperature step-down

• Waterproof and dustproof to IP67 standard (up to 1 meter)

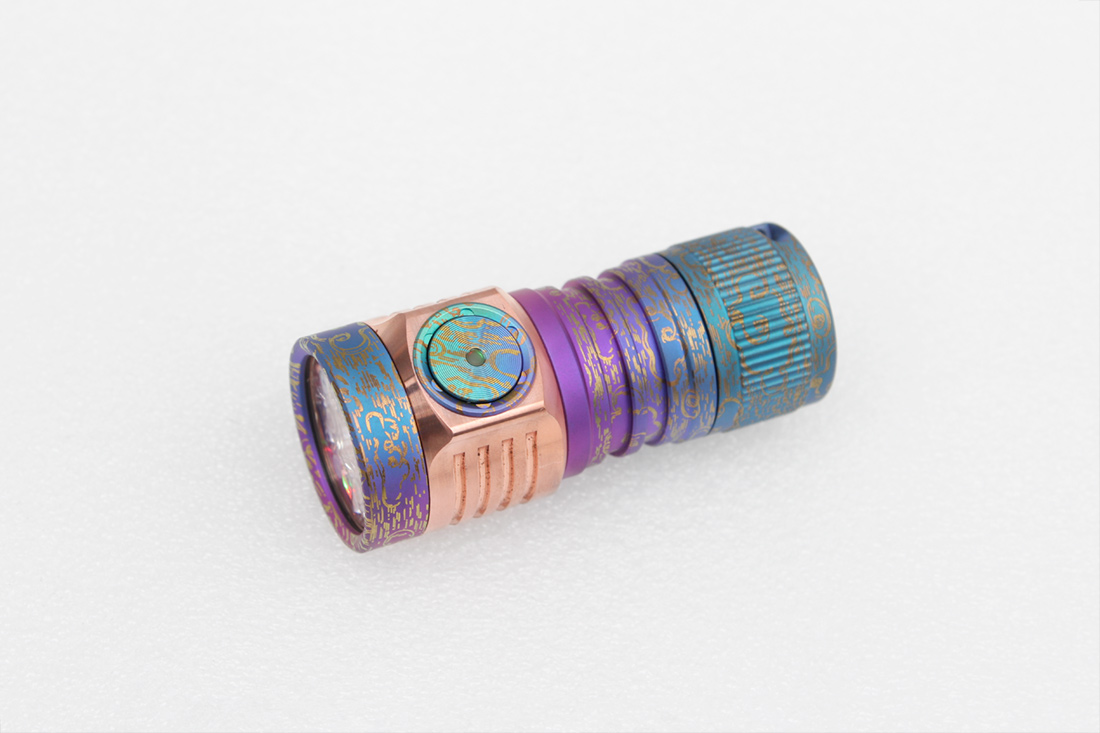

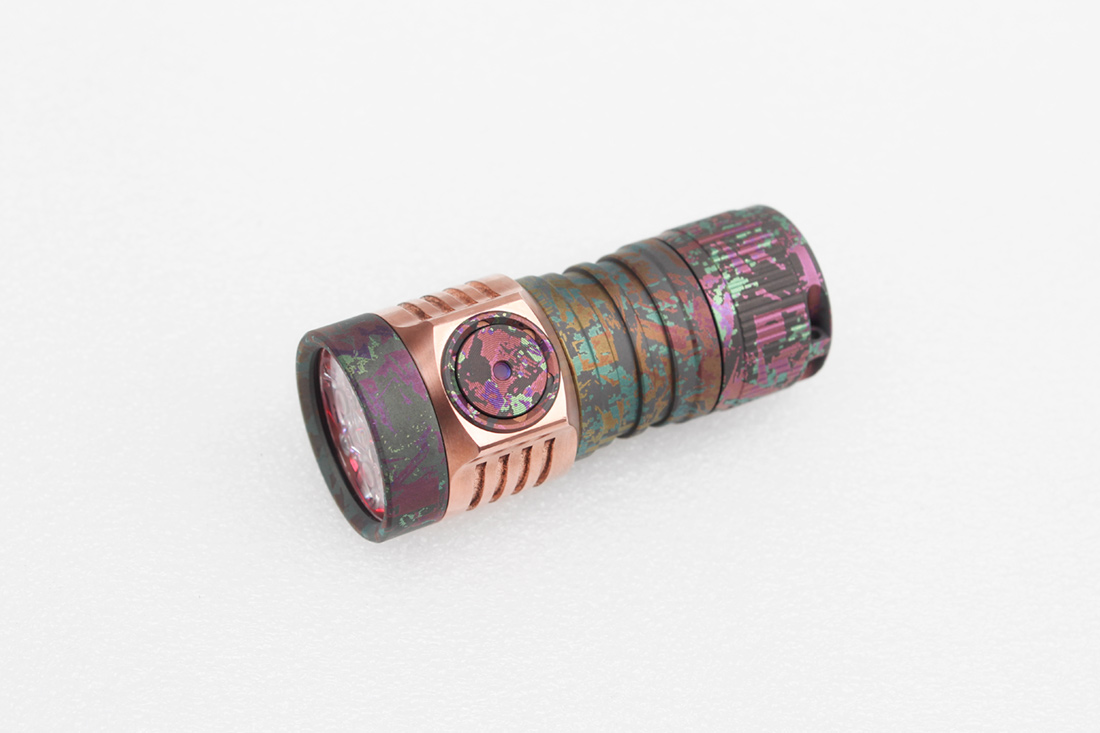

• Default 18650 body with optional 18350 battery tube

• Dimensions: 96mm(length) * 28mm(head) * 24mm(body), 65mm(lenght 18350)

OTF lumen output at start-up for Lume X1 driver:

NTG35 5000K/4200K: 2900lm

NTG35 2700K: 2500lm

NTG35 1800K: 2000lm

519A 5700K/5000K DOMED: 2600lm

519A 4500K/4000K DOMED: 2400lm

519A 3500K/2700K DOMED: 2200lm

519A 1800K: 2000lm

519A 5700K/5000K DEDOMED(about 1300K CCT reduce): 2300lm

519A 4500K/4000K DEDOMED (about 1200K CCT reduce): 2100lm

519A 3500K/2700K DEDOMED (about 1200K CCT reduce): 1800lm

SST-20 6500K: 3200lm

SFT-25R 6500K/5000K: 3600lm

OTF Lumen output at start up for Linear + FET driver

519A 5700K/5000K : 3800lm

519A 4500K/4000K: 3500lm

519A 3500K/2700K: 3200lm

519A 1800K: 2600lm

NTG35 5000K/4200K: 4200lm

NTG35 2700K: 3600lm

NTG35 1800K: 2800lm

SST-20 6500K: 4200lm

SFT-25R 6500K/5000K: 4800lm

This product uses free software distributed under the terms of the GPLv3.

Source code is available from https://toykeeper.net/anduril

The Mule version is with 8*LEDs, no optic, no aux LEDs, no hotspot, completely flood. For the general users, we recommend to choose regular version (with aux LED, optic etc) instead of the mule version. (send us an email to contact@intl-outdoor.com if you need the mule version)
